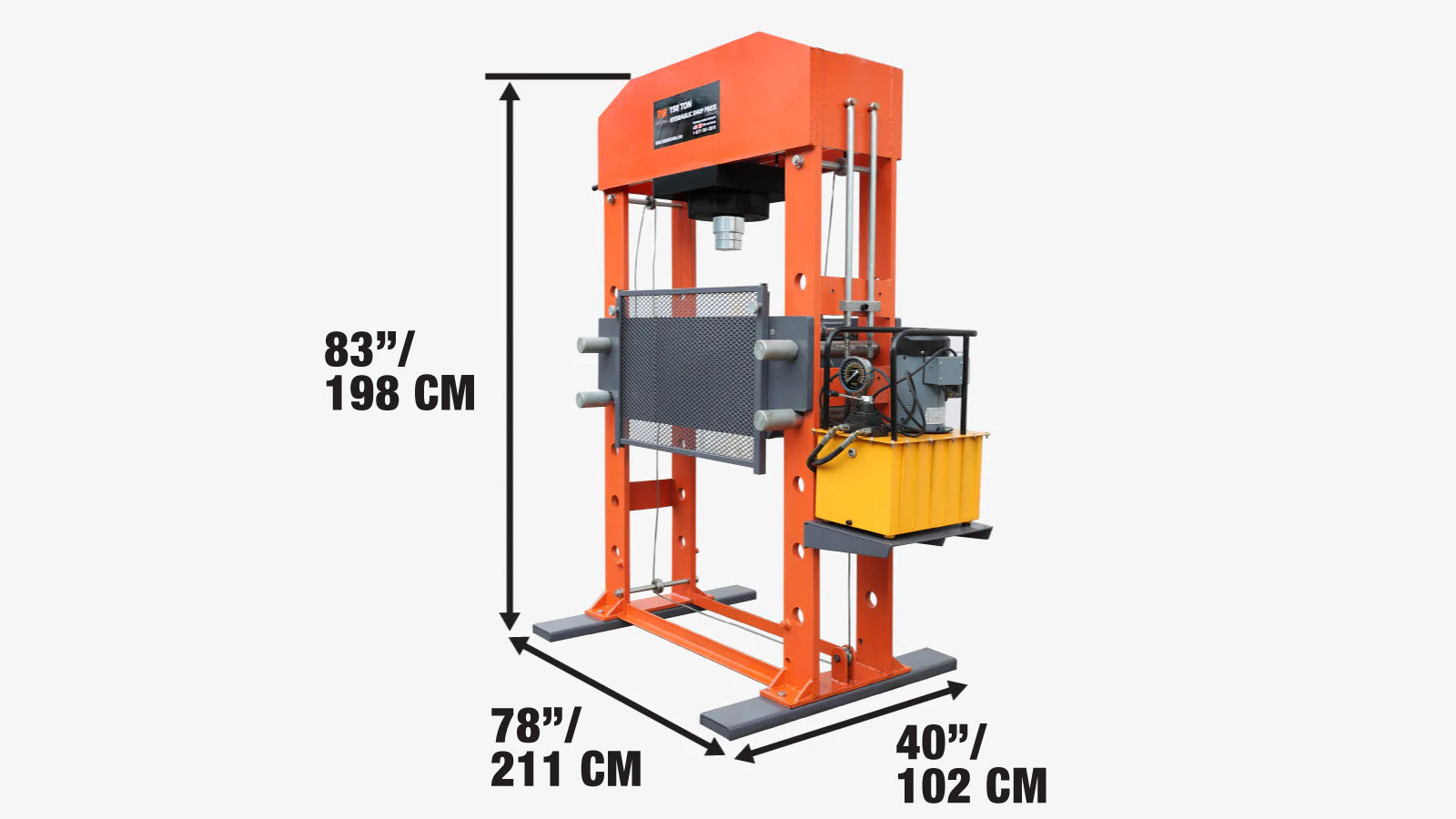

• Overall Dimensions: 203 × 100 × 214 cm
• Frame Construction: Fully Welded Heavy-Duty H-Frame
• Frame Overall Dimensions: 130 × 54 × 210 mm
• Operation Type: Electric Hydraulic Operation
• Protective Grid Guard: Included, 36” × 23”
• Bed Adjustment Mechanism: Steel Cable Crank Winch
• Gauge Type: 4" Oil-Filled Pressure Gauge
• Overload Protection: Yes
• Retracting Springs: Twin Springs
• Air / Pneumatic Pressure: N/A
• Max Pump Pressure: 58,605 KPa / 58.6 MPa
• Maximum Work Range: 940 mm
• Ram Stroke: 344 mm
• Ram Dia. / Cylinder Bore: 117 mm
• Ram Pressing Head Diameter: 98 mm (9.8 cm)
• Ram Left-Right Movement: 320 mm
• Carriage Bed Depth: 406 mm
• Carriage Bed Width: 860 mm
• Carriage Bed Pin Diameter: 55 mm
• Air Inlet Size: N/A
• Foot Switch: No
• Steel Cable Crank Winch: Yes
• Discharge Pressure: 105–115%
• Frame Internal Width: 35 cm
• Frame Internal Length / Upright Opening: 100 cm
• Electric Motor Certification (AU): CE Certified
• Electric Motor: 230V, 50Hz, 1.5KW
• Hydraulic Tank Capacity: 28 L / 7.5 Gal
• Hydraulic Fluid Recommended: ISO AW32
• Net Weight: 1056 kg
• Shipping Dimensions (L × W × H): 138 × 56 × 214 cm
• Shipping Weight: 1225 kg

Your order will be shipped from one of our main warehouses in the United Kingdom. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

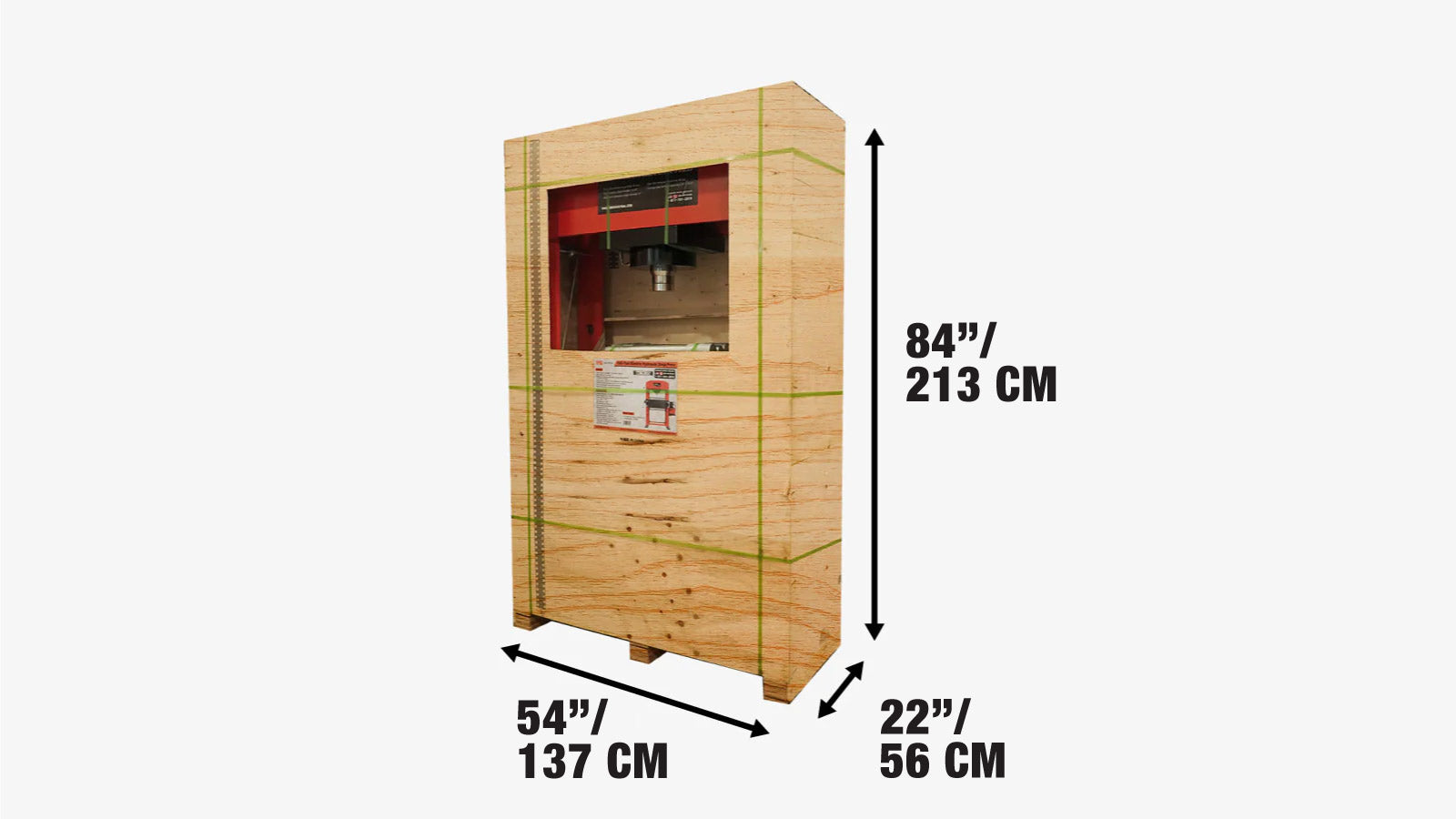

• Packaging: Packed in a wood crate shipping box
• Shipping dimensions: 138 x 56 x 214 cm (L x W x H)
• Shipping weight: 1225 kg

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

• Q: What is the TMG-SP150 Electric Hydraulic Shop Press?
  A: The TMG-SP150 is a heavy-duty electric hydraulic shop press designed for industrial and automotive tasks. It features a 150-ton pressing capacity and is built with a fully welded H-frame and a protective grid guard.
• Q: What is the maximum pressing force of the TMG-SP150?
  A: The TMG-SP150 has a maximum pressing force capacity of 150 tons.
• Q: What are the overall dimensions of the assembled press?
  A: The overall dimensions are 78 inches (199 cm) in length, 40 inches (102 cm) in width, and 83 inches (211 cm) in height.
• Q: What is the ram stroke length?
  A: The ram stroke length is 13-¾ inches (35 cm).
• Q: Does it have a protective guard?
  A: Yes, it includes a protective grid guard.
• Q: Is the press bed height adjustable?
  A: Yes, the press bed is adjustable with seven height positions, and adjustments are made easy with a steel cable crank winch.
• Q: Where can I find the product manual and additional support?
  A: The product manual for the TMG-SP150 is available online and provides detailed assembly instructions, safety guidelines, and maintenance tips. For further assistance, TMG Industrial's customer service can be reached via their website or by phone.
• Q: What is the warranty for the TMG-SP150?
  A: The TMG-SP150 is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
