• Overall Dimensions: 155 × 100 × 195 cm
• Frame Construction: Fully Welded Heavy-Duty H-Frame
• Frame Overall Dimensions: 110 × 48 × 187 cm
• Operation Type: Air & Manual Dual Operation

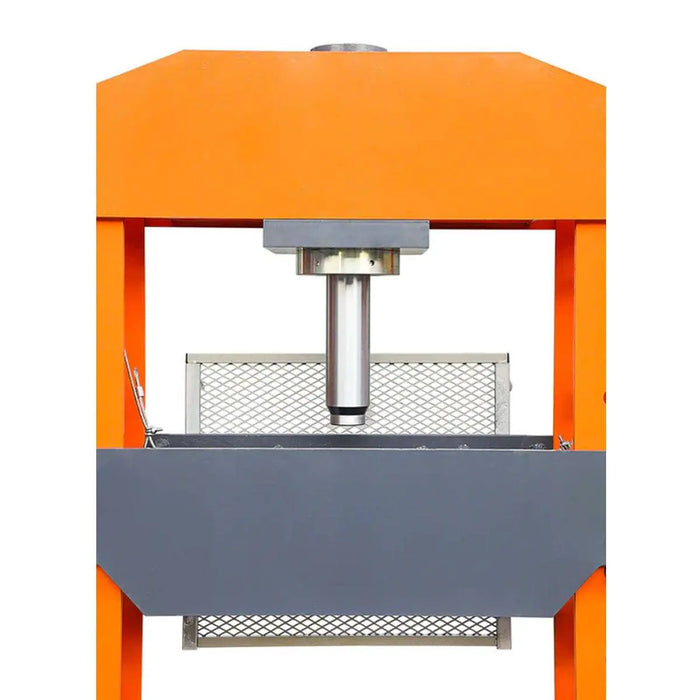

• Protective Grid Guard: Included

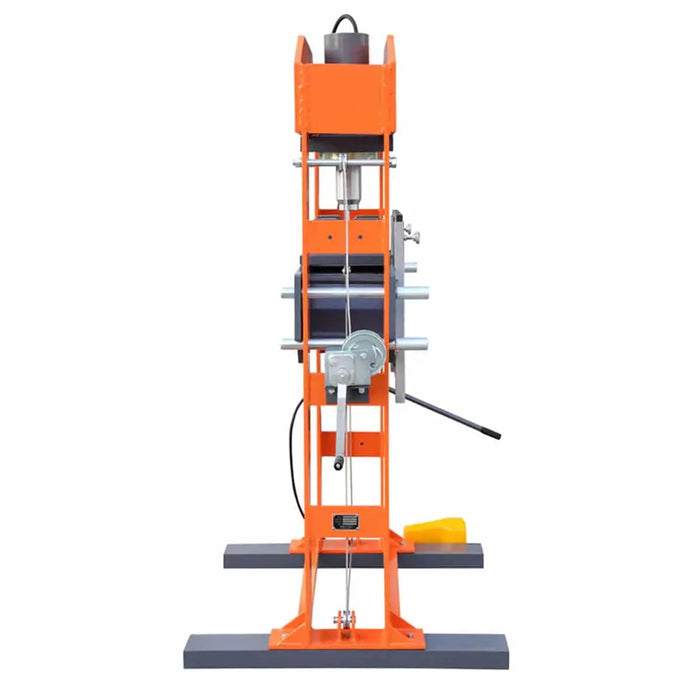

• Bed Adjustment Mechanism: Steel Cable Crank Winch
• Gauge Type: 4" Oil-Filled Pressure Gauge
• Overload Protection: No
• Retracting Springs: Twin Springs
• Air / Pneumatic Pressure: 758 – 862 KPa
• Max Pump Pressure: N/A
• Maximum Work Range: 1010 mm
• Ram Stroke: 275 mm
• Ram Dia. / Cylinder Bore: 125 mm
• Ram Pressing Head Diameter: N/A
• Ram Left-Right Movement: 250 mm
• Carriage Bed Depth: 304 mm
• Carriage Bed Width: 820 mm
• Carriage Bed Pin Diameter: N/A
• Air Inlet Size: 1/4" NPT

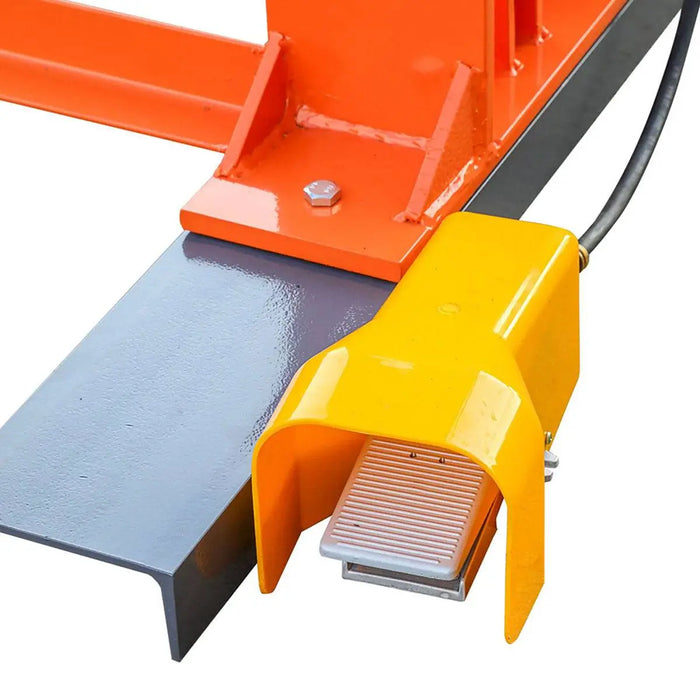

• Foot Switch: Yes
• Steel Cable Crank Winch: Yes
• Discharge Pressure: N/A
• Frame Internal Width: N/A
• Frame Internal Length / Upright Opening: 110 cm
• Electric Motor Certification (AU): N/A
• Electric Motor Certification (CA/US): N/A
• Hydraulic Tank Capacity: N/A
• Hydraulic Fluid Recommended: ISO AW32
• Net Weight: 552 kg
• Shipping Dimensions (L × W × H): 196 × 115 × 61 cm
• Shipping Weight: 604 kg

Your order will be shipped from one of our main warehouses in the United Kingdom. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

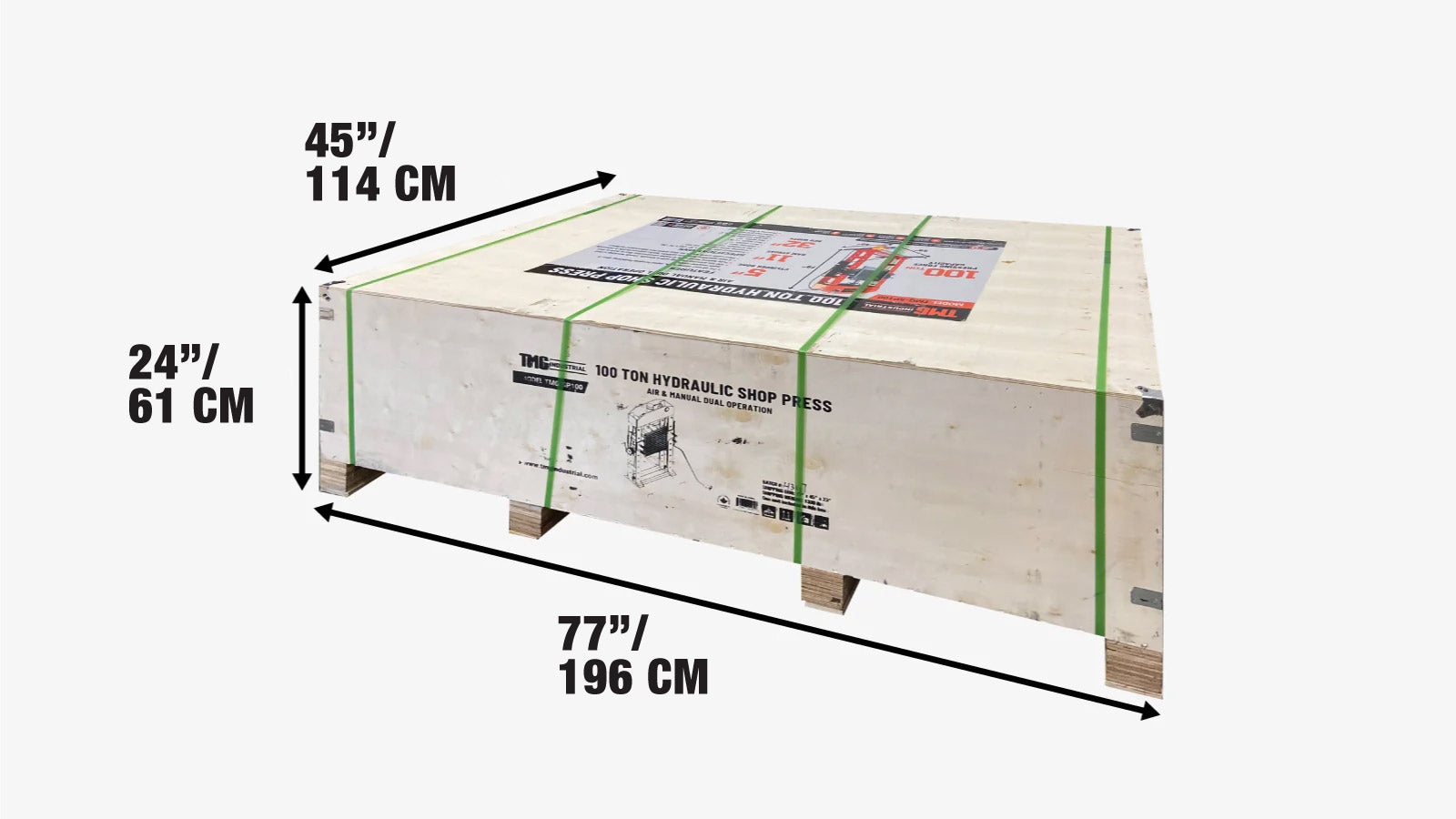

• Packaging: Packed in a wood crate shipping box
• Shipping dimensions: 196 x 115 x 61 cm (L x W x H)
• Shipping weight: 604 kg

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

• Q: What is the TMG-SP100 Hydraulic Shop Press?

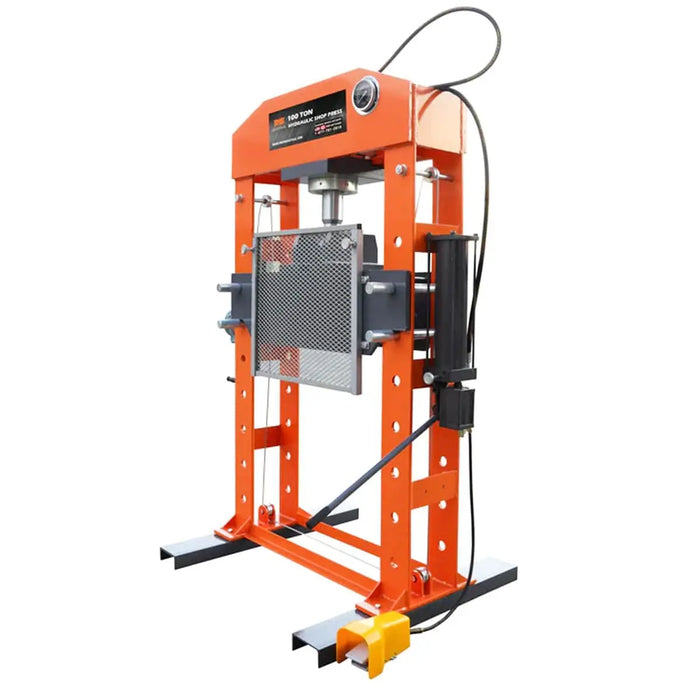

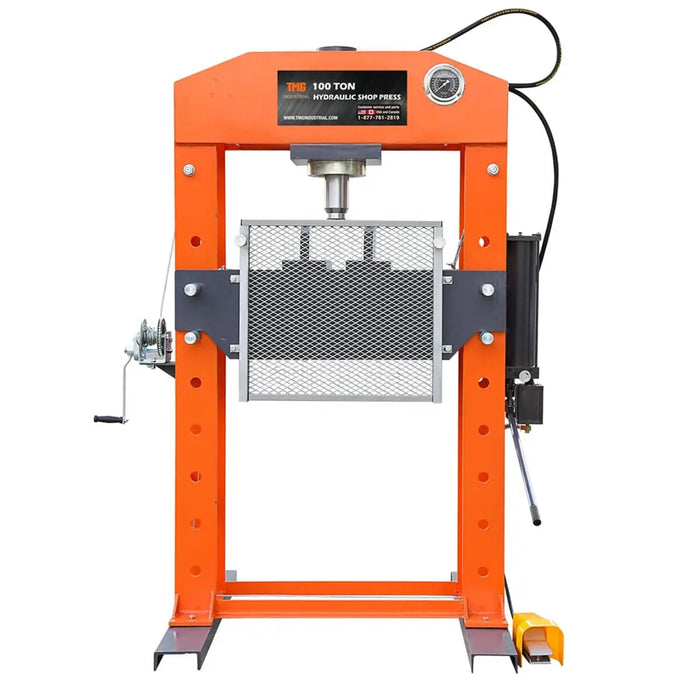

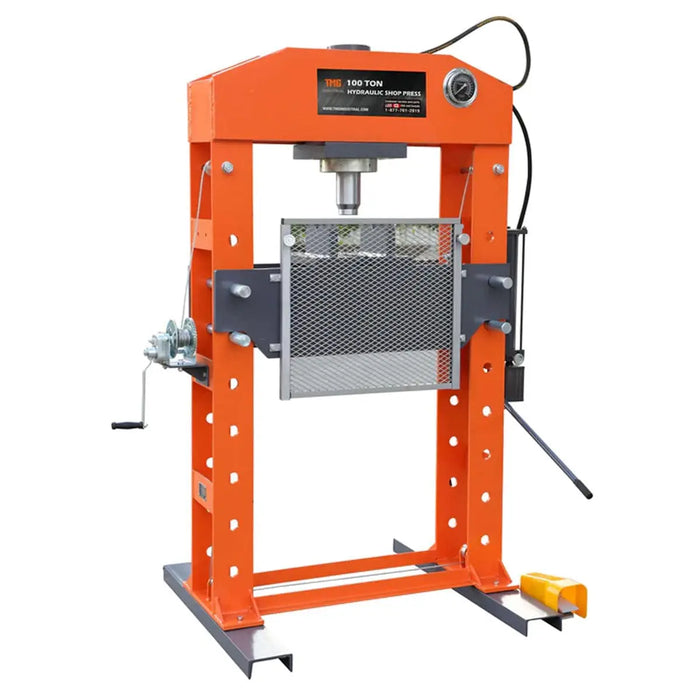

  A: The TMG-SP100 is a heavy-duty hydraulic shop press designed for various industrial and automotive tasks such as pushing bearings, stamp work, and bending metal. It features a 100-ton pressing capacity and can be operated both pneumatically and manually.
• Q: What is the maximum pressing force of the TMG-SP100?
  A: The TMG-SP100 has a maximum pressing force capacity of 100 tons.
• Q: How does the TMG-SP100 operate?
  A: The TMG-SP100 operates using a dual hydraulic cylinder, allowing for both pneumatic (air-powered, requiring 110-125 PSI) and manual operation.

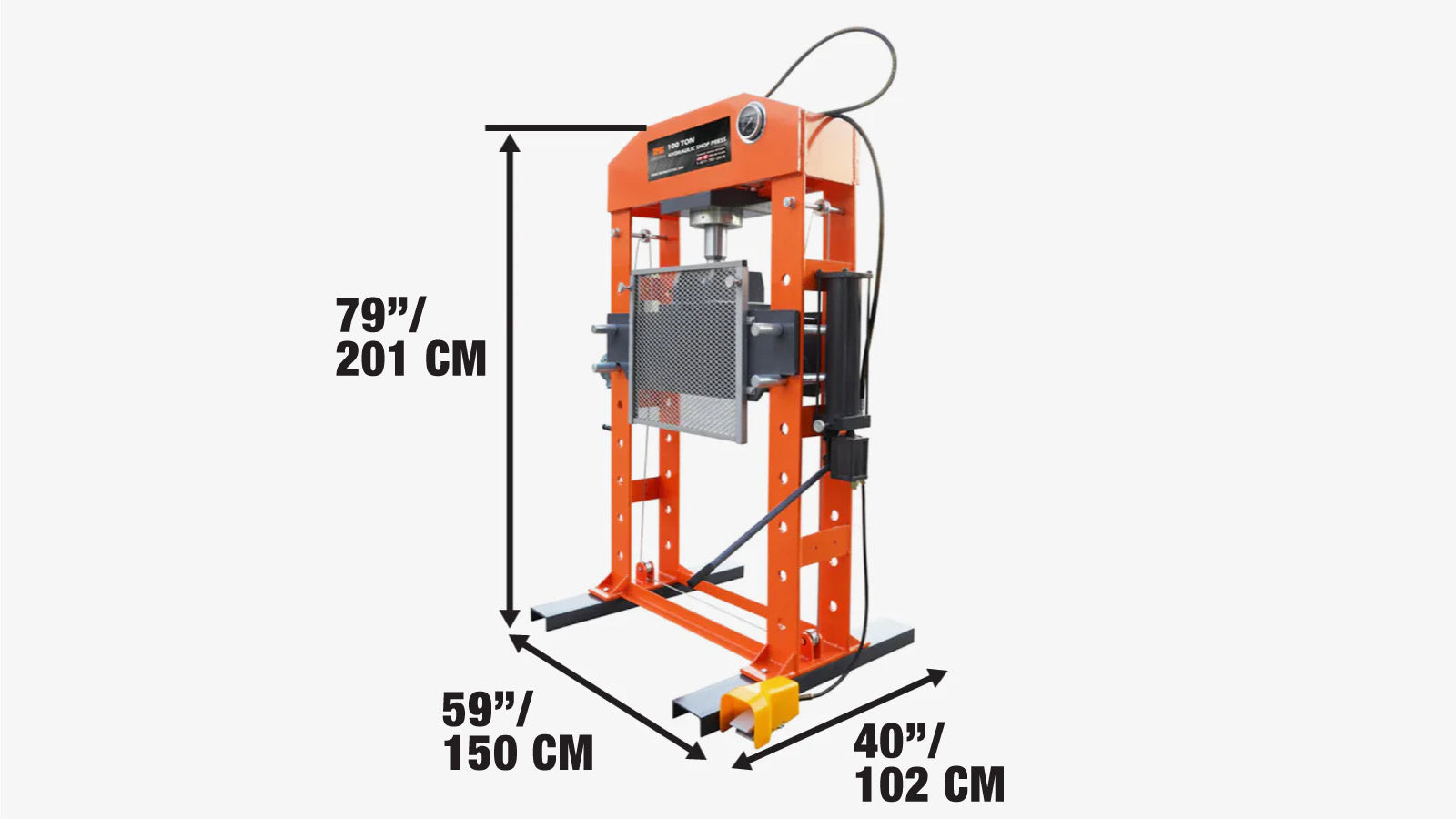

• Q: What are the main assembled dimensions of the press?
  A: The assembled dimensions of the TMG-SP100 are 59 inches (150 cm) in length, 40 inches (102 cm) in width, and 79 inches (201 cm) in height.
• Q: Is the press bed height adjustable?
  A: Yes, the press bed is adjustable with seven height positions, and adjustments are made easy with a steel cable crank winch.
• Q: Where can I find the product manual and additional support?
  A: The product manual for the TMG-SP100 is available online and provides detailed assembly instructions, safety guidelines, and maintenance tips. For further assistance, TMG Industrial's customer service can be reached via their website or by phone.
• Q: What is the warranty for the TMG-SP100?
  A: The TMG-SP100 is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
