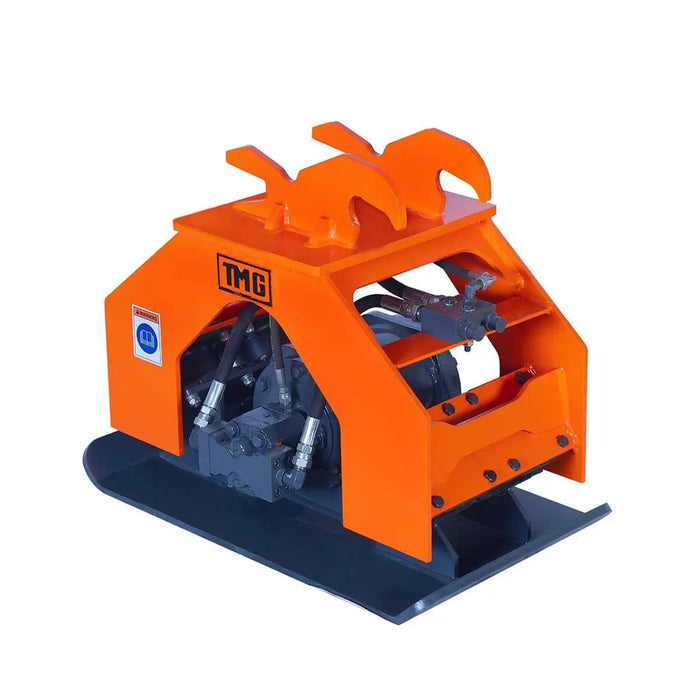

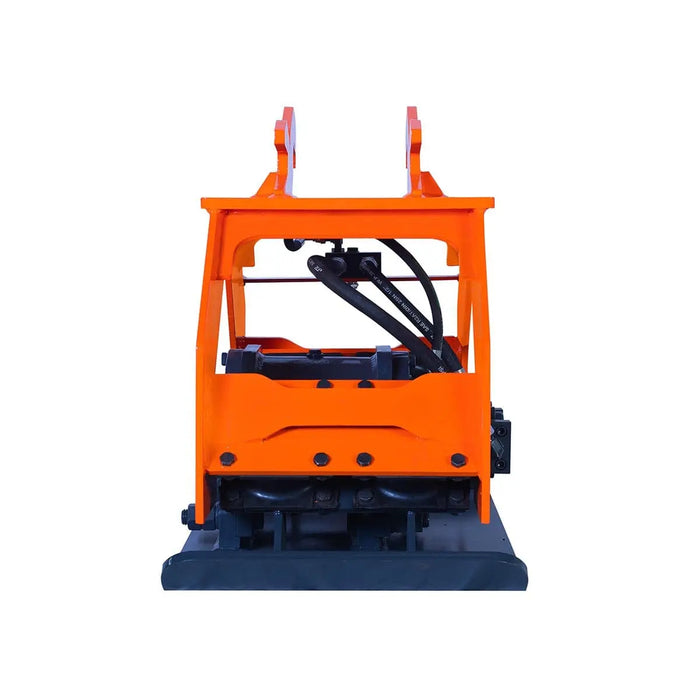

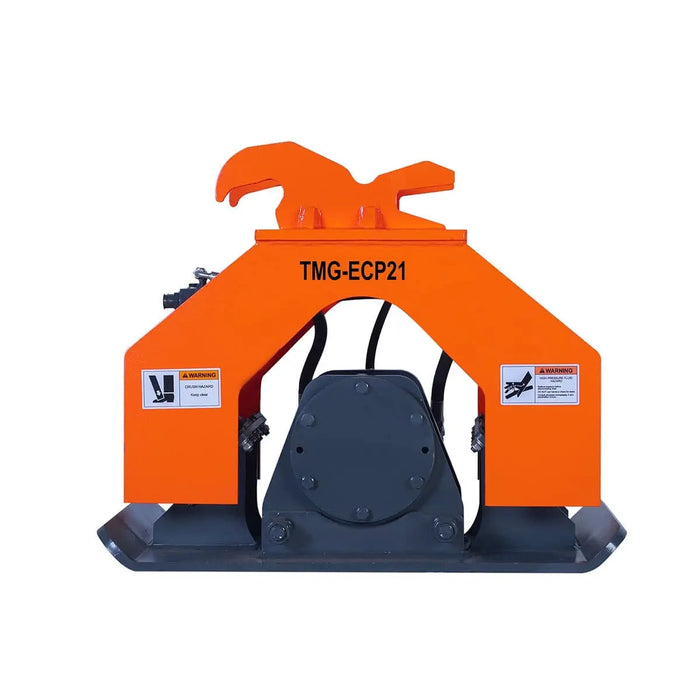

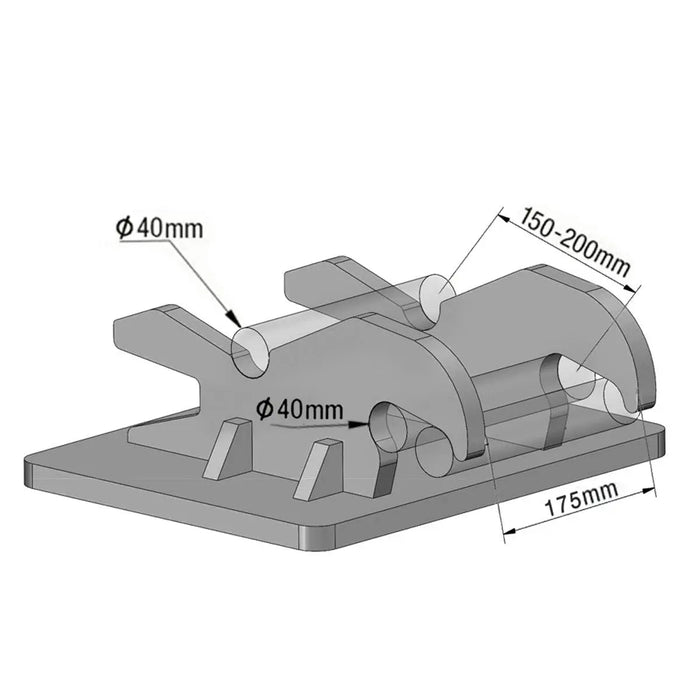

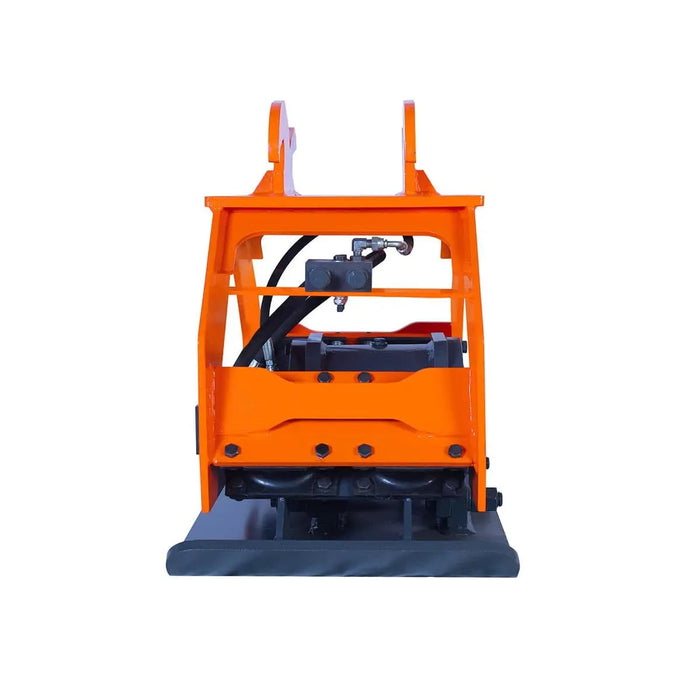

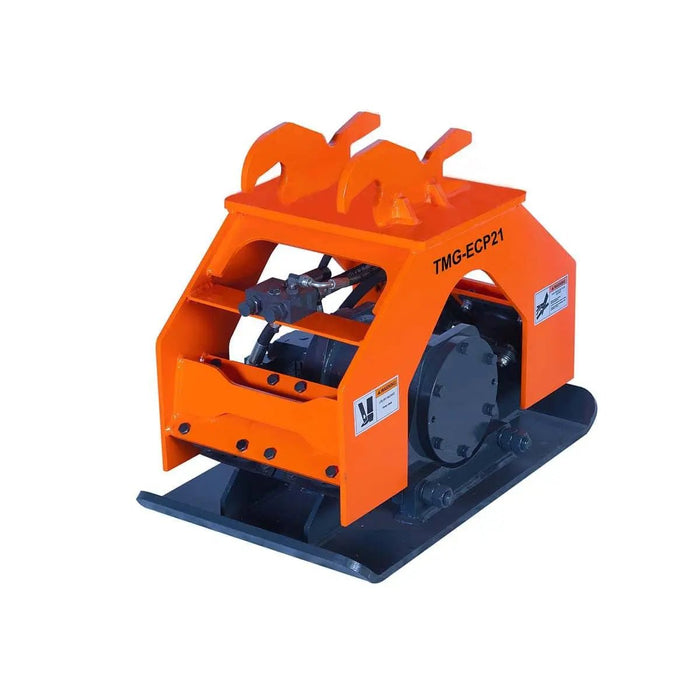

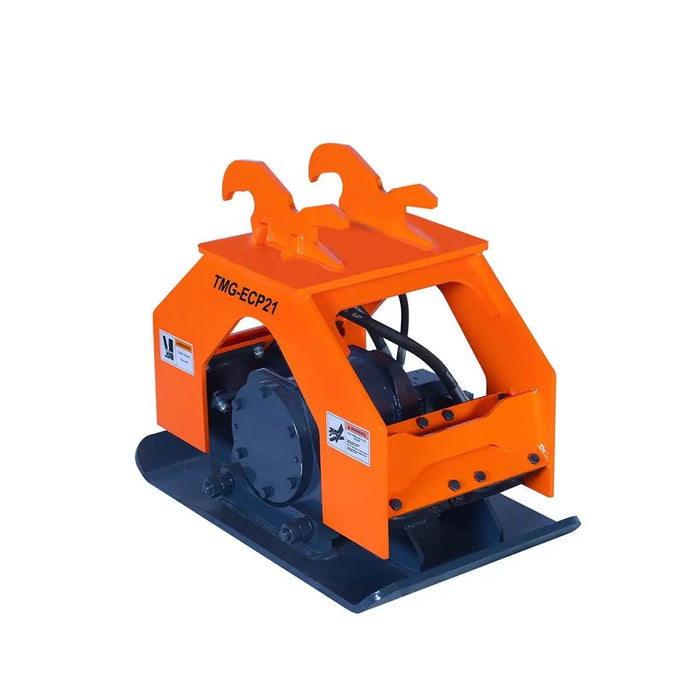

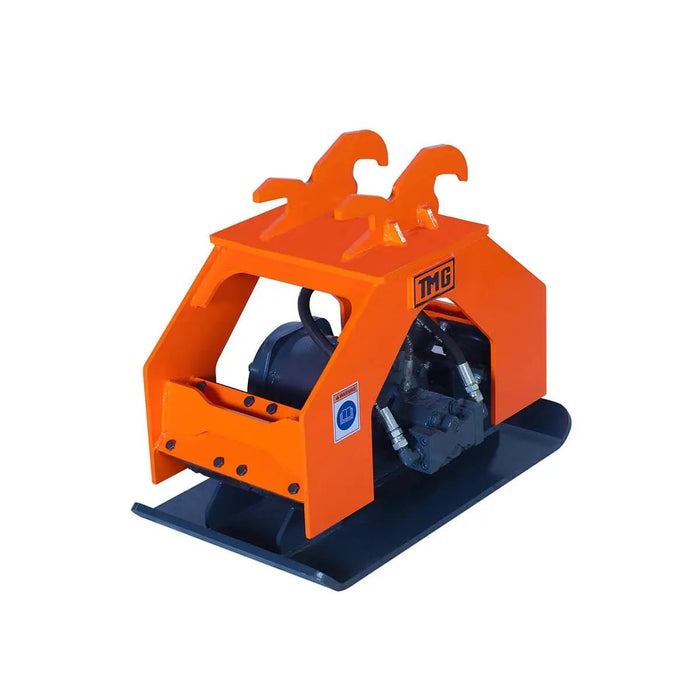

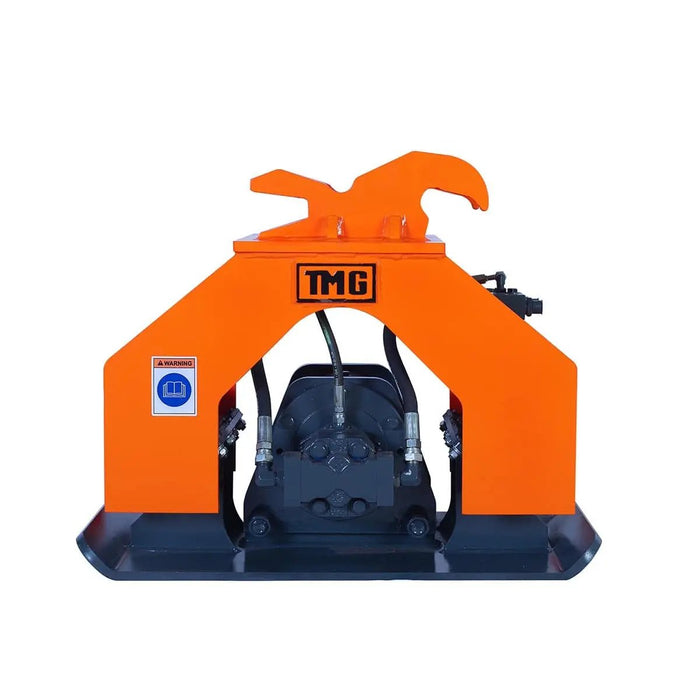

The TMG-ECP21 Hydraulic Plate Compactor is a robust attachment designed for 2–4 ton excavators, delivering 40 kN of impulse force for effective soil compaction. Its quick-change lugging system enhances workflow efficiency, making it an ideal choice for the United Kingdomn contractors involved in construction, landscaping, and roadwork projects. With features like a fully sealed motor, overload protection, and optimized vibration control, the TMG-ECP21 ensures reliable performance and durability in demanding work environments.

• Compatible Excavators: 2–4 Ton
• Impulse Force: 39.1 kN
• Compaction Force: 3 ton
• Compaction Depth (mm): 380–480 mm
• Compaction Density: 85% at 762 mm
• Exciter Frequency: 2000 RPM

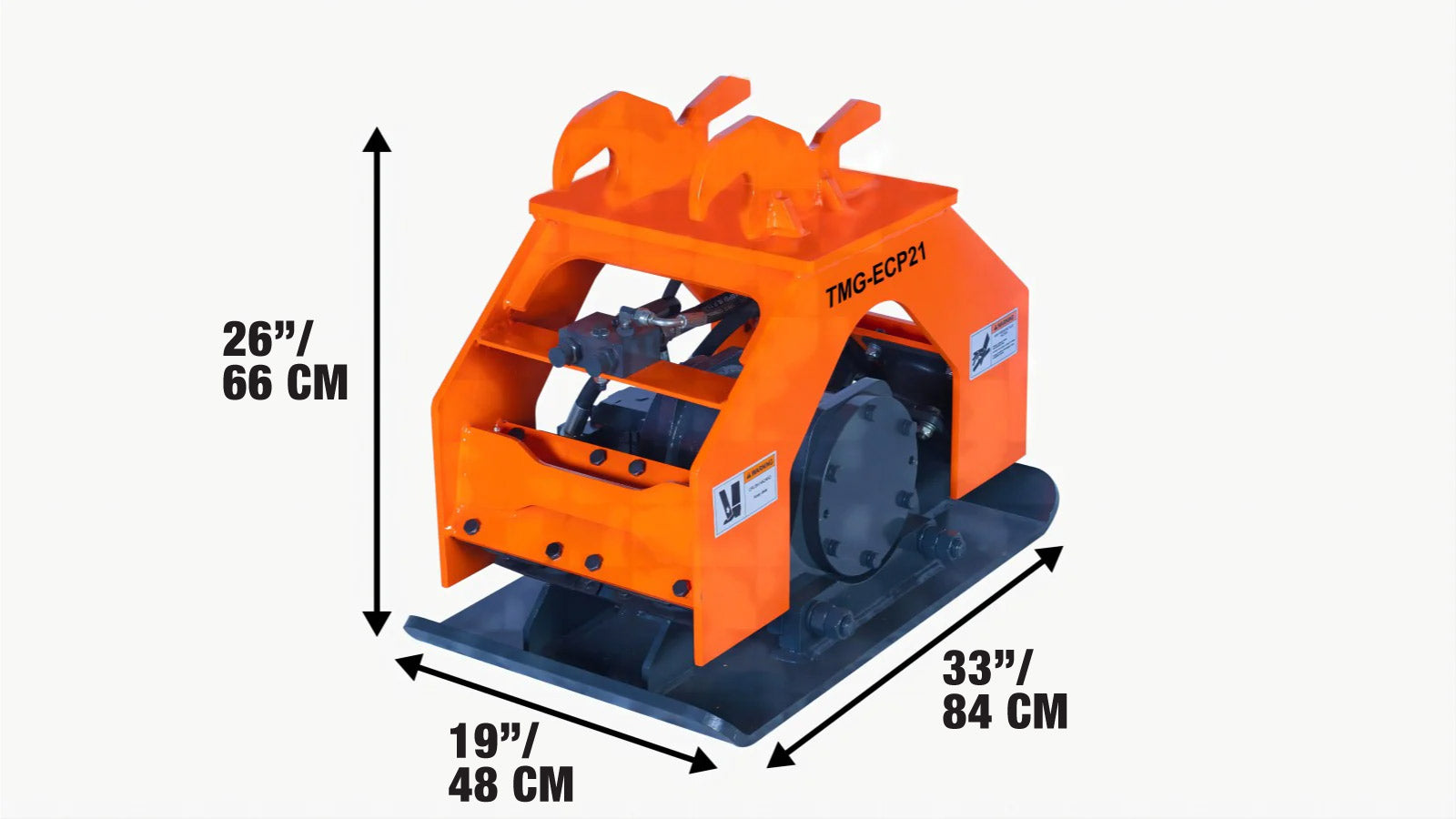

• Bottom Plate Size (mm): 814 x 520 mm
• Hydraulic Flow (L/min): 25–45 L/min
• Hydraulic Pressure: 80–120 bar
• Hydraulic Hoses Included: (2) ½" NPT thread high-pressure hoses
• Hydraulic Hoses (Qty & Size): 2 pcs, 1/2" x 1.5 m
• Net Weight: 240 kg

Your order will be shipped from one of our main warehouses in the United Kingdom. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

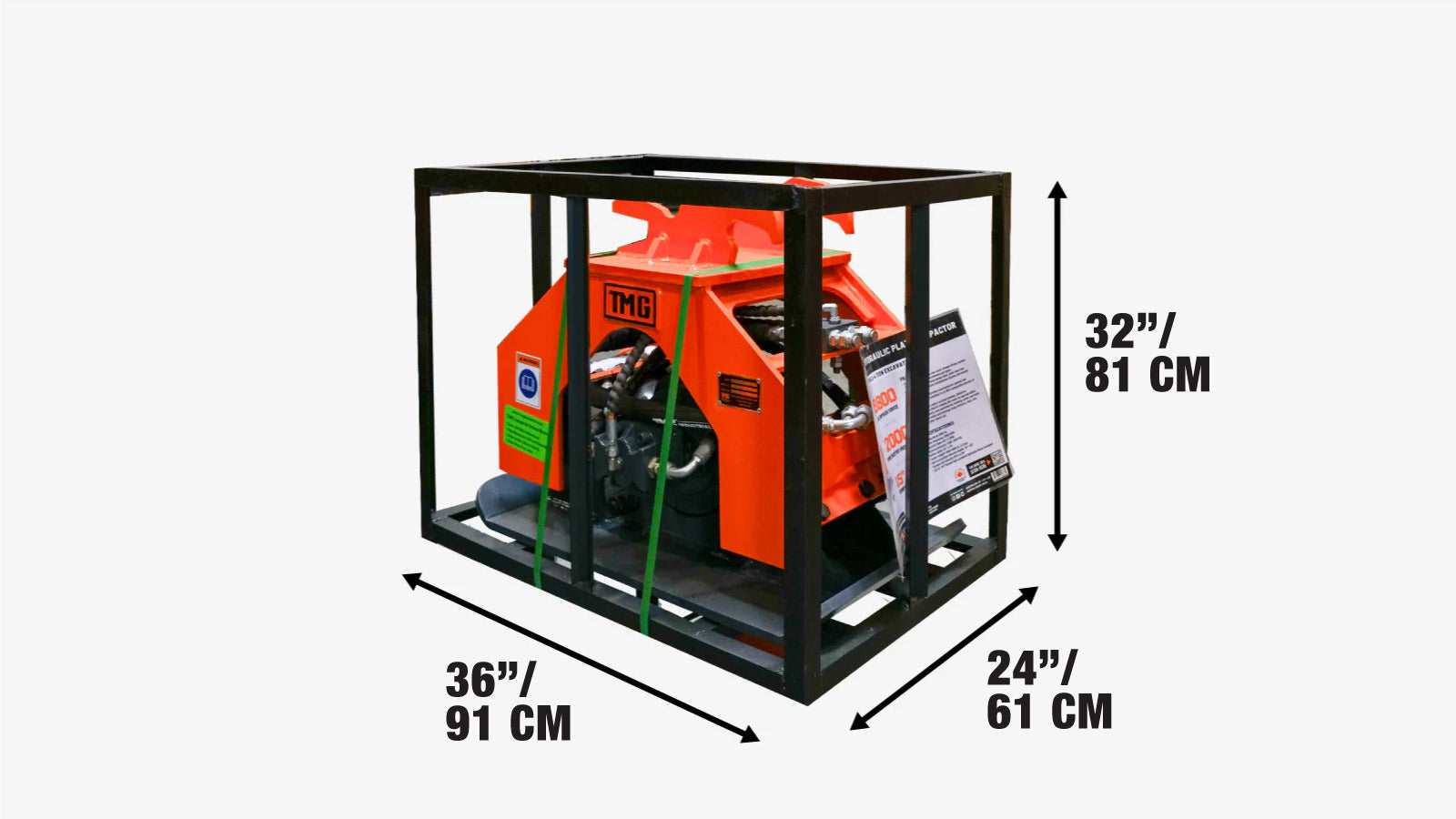

• This product is packed in a metal crate shipping box
• Shipping Dimensions: 92 cm × 61 cm × 82 cm (L × W × H)
• Shipping Weight: 254 kg

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Q: What is the TMG-ECP21 used for?

The TMG-ECP21 is a powerful hydraulic plate compactor designed for compacting soils, gravels, and sands. It's ideal for foundation prep, road construction, and trench backfilling in tight areas.

Q: What size excavator is the TMG-ECP21 compatible with?

This unit is compatible with mini excavators weighing 2 to 4 tons (approximately 1,996 to 3,992 kg).

Q: What is the impulse force of the TMG-ECP21?

The compactor delivers 8,800 lbf (40 kN) of impulse force for powerful and consistent soil compaction.

Q: What is the effective compaction depth?

You can achieve 15 to 19 inches (38.1 to 48.3 cm) of effective compaction depth depending on soil type.

Q: What is the compaction density?

Up to 85% density can be achieved at 30 inches (76.2 cm) depth with optimal vibration and compaction.

Q: What are the hydraulic requirements?

Hydraulic flow: 6.6–11 GPM (25–41.6 LPM); Operating pressure: 1420–1850 PSI (9.8–12.8 MPa).

Q: What are the dimensions of the bottom plate?

The bottom plate measures 33" × 19" (83.8 cm × 48.3 cm).

Q: Are hydraulic hoses included?

Yes, two 1/2" NPT high-pressure hydraulic hoses are included for immediate hookup.

Q: Does it have any protection features?

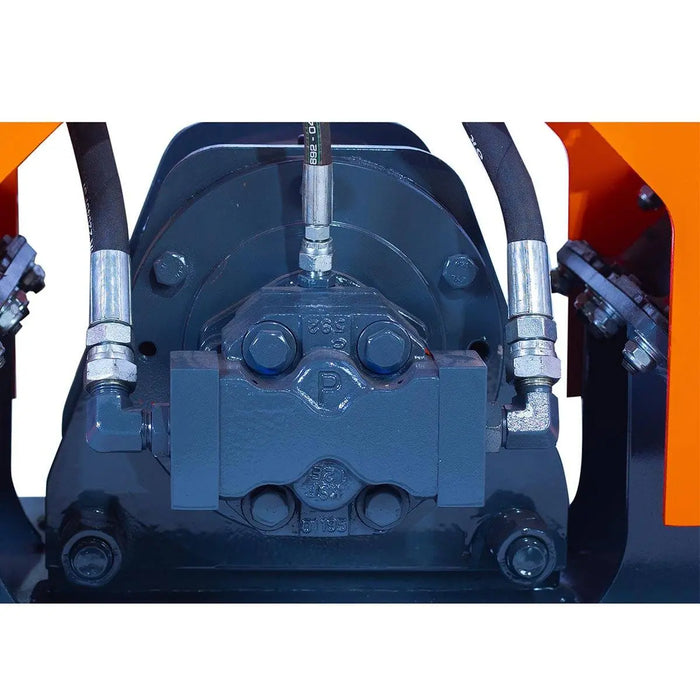

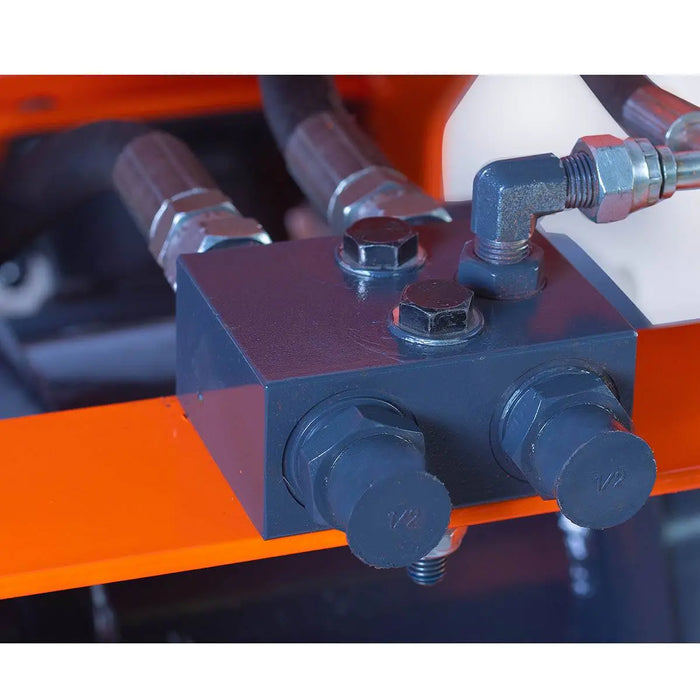

Yes, it includes an overload shutoff valve, industrial-grade rubber vibration isolators, and fully sealed motor and bearings to protect against dust, moisture, and vibration damage.

Q: What is the warranty?

Backed by a 1-year manufacturer warranty. Refer to TMG Industrial’s warranty policy for details.
